DETa-1 collet holder

  • feature
  • system
  • Dimension
  • Cutting data

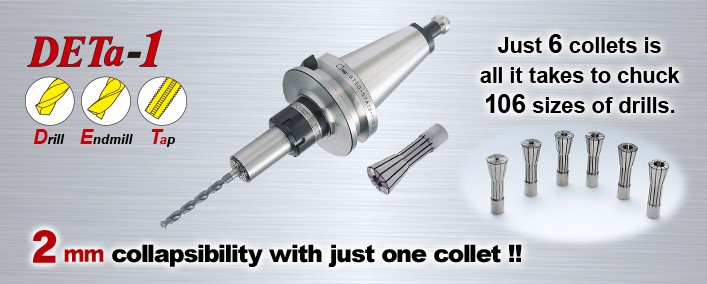

Both large collapsibility and precise chucking achieved by the pull collet design.

Slim and compact

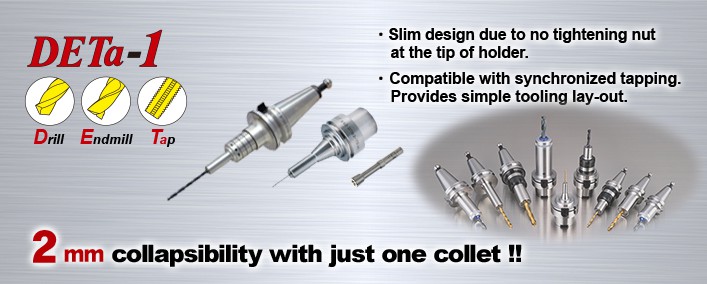

Slim and compact without the nut at the tip and minimize interference with work-piece and jig fixture.

Fewer collet types means easier collet management .

With their optimal collapsibility, these collets make it possible to reduce the number of collets you need by 90%, compared to our former products.

Highest guaranteed accuracies throughout entire chucking range (100% inspection).

Accuracy is guaranteed even using collapsibility.


Multiple coolant systems

The spindle-through feature can be used whether the cutting tool has oil holes or not.

>>details for coolant-through system

>>Cutter life comparison when using cutter-through coolant and external coolant

Pre-balanced design (DTE type)

The collet holder is pre-balanced by previously designing the holder to be as axisymmetrical as possible. When used with the precision collet, it enables stable machining during highspeed machining.

3 types for the purpose

DETa-1 Collet

Coolant-through system

Dimensions/ Drawing Data download

bt_sunpo bt_gaike_kr bt_zumen

btn_adobe
 In order to view documents in PDF format, Adobe Reader® is required.
 You can downolad the latest version of Adobe Reader® for free from the Adobe site.

Cutting data
