FMH RIGID TYPE

  • Feature
  • Dimensions
  • Cutting Data

Reduced cutting vibration leads to
longer insert life.
Ideal for unattended operation

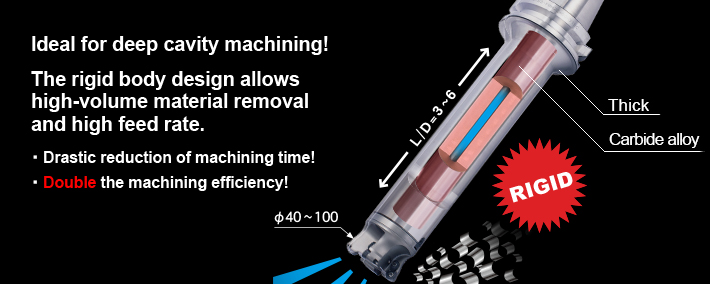

Large-diameter carbide alloy

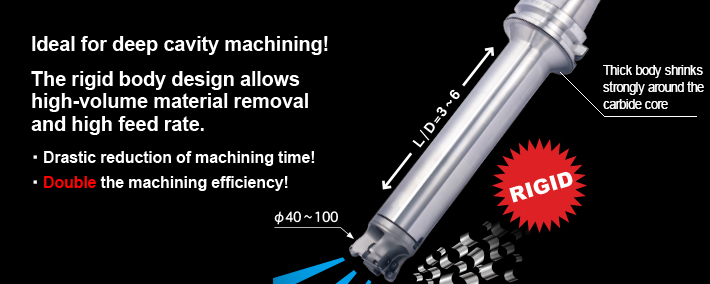

The large-diameter carbide core is integrated into the thick body by shrink-fitting.
Achieves less deflection and higher efficiency during long-gauge machining.
Vibration-free machining leads to longer insert life and achieves stable machining
during long, continuous operation.

Double the machining efficiency!

Double the machining efficiency(compared to conventional holders)

Series expanded to include many different lengths

Effective length of our line up is from 110mm to 360mm.
By being able to choose from a variety of FMH rigid-type arbors depending on
the cavity depth of large-size work-pieces, machinability is doubled
thanks to greater material removal and higher feed rate.

Can be used with these manufacturers’ cutters(FMH standard)

Mitsubishi MaterialsKyoceraOSG
MMC-hitachitoolDijetTungaloy




Dimensions/ External drawings/ Drawing Data Download

bt_sunpo bt_gaike_kr bt_zumen

btn_adobe
  In order to view documents in PDF format, Adobe Reader® is required.
  You can downolad the latest version of Adobe Reader® for free from the Adobe site.

Comparison test with FMH RIGID type
