New extra-compact head HALF mini version provides the rigidity and accuracy needed for drilling and tapping!
Try our lightweight, affordable and quick-delivery new Angle Head HALF.



  • Price・Delivery time・Weight
    half that of conventional products
  • Disassemble and repair on your own
  • Best for small M/C

Affordable Speedy
Repair in-House Lightweight, Compact

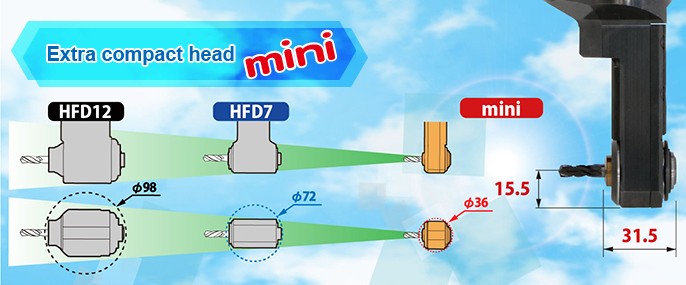

Ultra compact

The optimum angle head for milling, drilling and chamfering of tight-fit, hard-to-machine workpieces and internal bore applications.

Endmilling, Drilling, Chamfering

Lightweight

anglehead_img06

ATC possible on small machining centers

Adequate machining capability despite its light weight

Cutting Data

Easy to reassemble

1つの本体でドリル加工 タップ加工
Drilling and Tapping with 1 unit
シャンクの交換で様々な機械主軸に対応
Exchange shank for different spindles

Easy disassembly and assembly

An informative video and an instruction manual for disassembly and reassembly are provided. An informative video and an instruction manual for disassembly and reassembly are provided.
The number of parts (22pcs.) is half that of conventional angle heads.  No need for fine matching and adjustment. The number of parts (22 pcs.) is half that of conventional angle heads. No need for fine matching and adjustment.
Now that commercially available gears and bearings are used, you can replace them easily at lower cost.
Now that commercially available gears and bearings are used, you can replace them easily at lower cost.

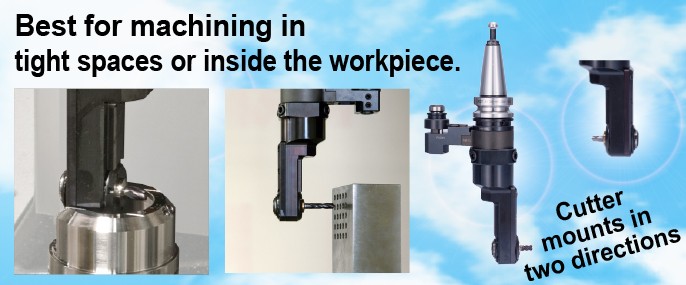

Cutter mounts in two directions

Shrink-fit collets can be mounted both ways.

Shrink-fit collets can be mounted both ways.

Positioning block and positioning pin

Can be used with any type of machining center. For machines that do not come with a positioning block, a semi-finished positioning block is available, which the customer can easily fabricate.
